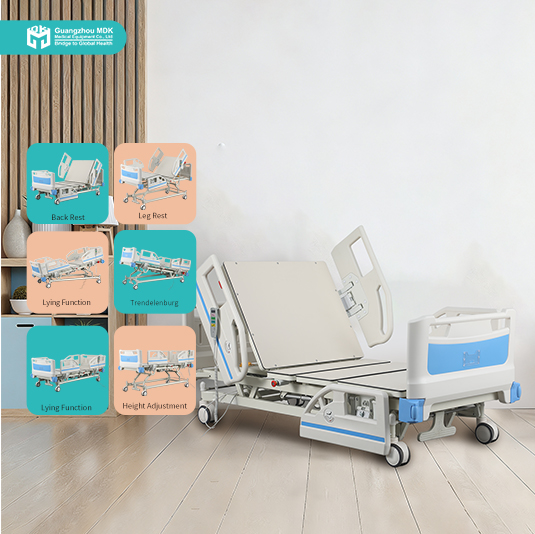

Electric 5-Function ICU Bed with Full-Body X-Ray Translucency & Central Casters
| Special Function | Full-Body X-Ray Translucency |
| Overall Dimensions | 2190 * 1090 * 435-765mm (±50mm) |
| X-Ray Cassette Size | 356 * 432mm |
| Frame Material | 30*60*1.2mm Carbon Steel Frame (Acid-washed & Powder-coated) |
| Bed Board Material | 8.0mm Thick Compact Laminate Board (Firm & Non-deforming) |
| Head & Foot Boards | PP Hanging Blow-molded Material (One-piece molding, with lock and anti-collision wheels) |
| Guardrails | PP Semi-Enclosed 4-Piece Guardrails |
| Motor System | Premium Jieshun 1-to-4 Motor |
| Casters | Four 5-inch Luxury Central Locking Casters |
| Adjustment Angles | Backrest: 0 - 70° (±5°)Leg Elevation: 0 - 50° (±5°)Trendelenburg / Reverse: 0 - 12° (±2°) |
| Height Adjustment | 435mm - 765mm (±20mm) |
| Weight Capacity | ≥ 240 KG |
Designed for critical and trauma care, this electric nursing bed stands out with its full-body X-ray translucency. Powered by a premium Jieshun 1-to-4 motor system, it offers precise adjustments for the backrest (0-70°), leg elevation (0-50°), overall height (435-765mm), and Trendelenburg/Reverse Trendelenburg (0-12°). The bed is specially equipped to accommodate a 356 * 432mm X-ray cassette, allowing medical staff to perform full-body radiological examinations without transferring the patient, significantly reducing secondary injury risks.
The structural foundation is exceptionally robust. The main frame is constructed from 30 * 60 * 1.2mm high-quality carbon steel pipes. To guarantee long-lasting performance in demanding environments, the steel framework undergoes a strict pickling and phosphating (acid washing) pre-treatment. Followed by an advanced electrostatic powder coating process, the finish firmly adheres to the metal, effectively preventing peeling and rusting. The bed surface is assembled with an 8.0mm thick Compact Laminate board, renowned for its supreme firmness, non-deforming nature, and excellent X-ray penetration.
Safety and efficiency are prioritized. The head and footboards feature a robust PP hanging blow-molded design with secure locking devices and corner anti-collision wheels to protect facility walls. The bed utilizes a PP semi-enclosed 4-piece guardrail system to provide maximum fall protection while granting easy caregiver access. For secure transit, it is equipped with four 5-inch luxury central locking casters, enabling staff to lock all wheels simultaneously with a single step.
